Tasks for the day today included removing the entire interior; the brake master cylinder and booster; the steering column; heater and AC components; assembling the LS1 and T56; and test-fitting them into the vehicle so I can figure out how much of the floor I'll need to cut out.
| This was my starting point today. Here I've removed the driver's seat and pulled the gauge carrier out. |
| Center console and steering column removed. |

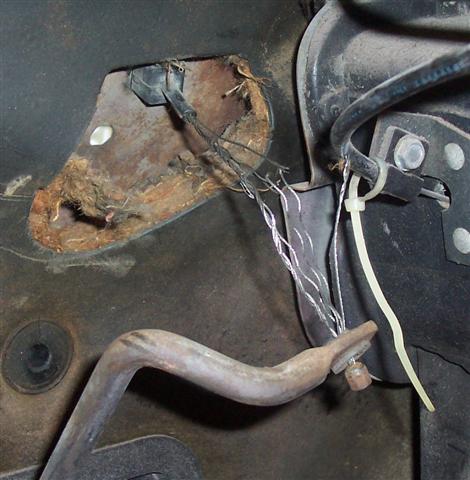

| Looks like my throttle cable was about to snap anyway. |

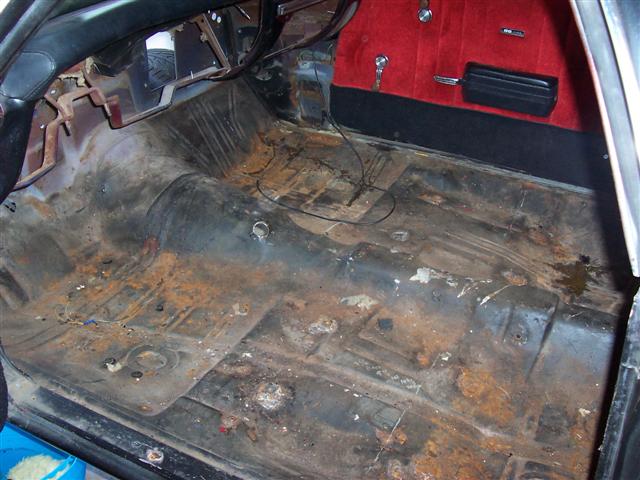

| Interior removed. The carpet was trash - the leaks caused some mold and general water damage. I've got rust issues - driver's side front, and passenger side rear. I expect those are also because of the leaks. |
| My "used but in good shape" clutch doesn't appear to be in good shape. I am relatively sure that McLeod rebuilds these for a fee; I'll have to find out the details tomorrow. |
| Better view of the flywheel. Was almost tempted to go ahead and put my stock single-disk clutch that came with the engine in. |

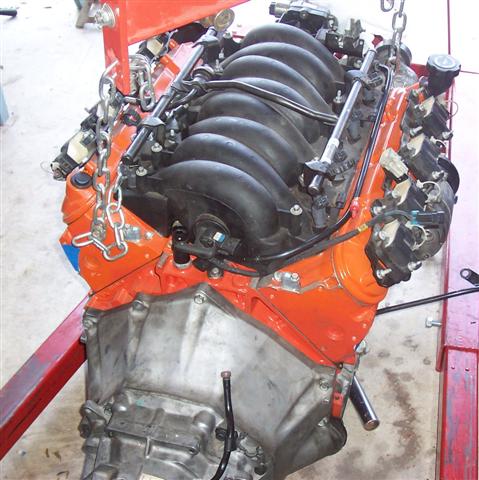

| But instead I just attached the transmission to the engine with no clutch at all. I needed to get it in the car to figure out the engine and transmission mounts and figure out where I needed to clearance the tunnel. |

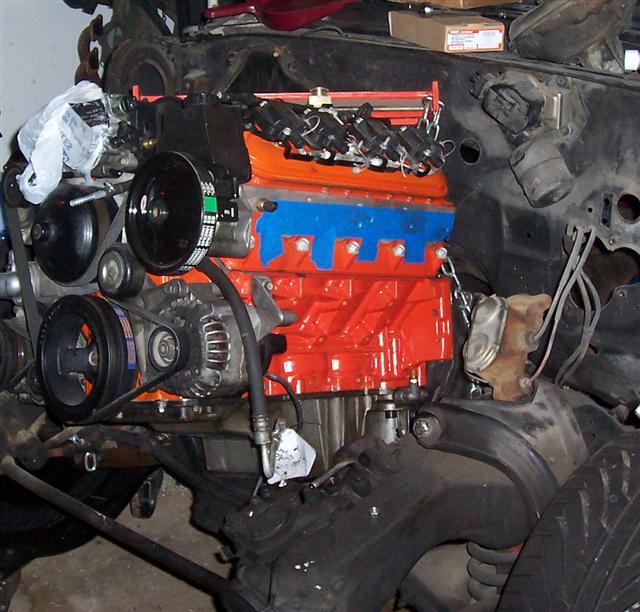

| Here's as far as I got it in. I had some issues with the crossmember - I'd left it in when I was pulling the 396 out; getting the bolts off was difficult, I even had to cut a hole in the floor to get a socket on one of them. |
| Alternate view of my final position. |
